Do you know the actual state of your railway points?
A field measurement with the mobile point testing system MobiWAPS records your maintenance activities and helps you in troubleshooting.

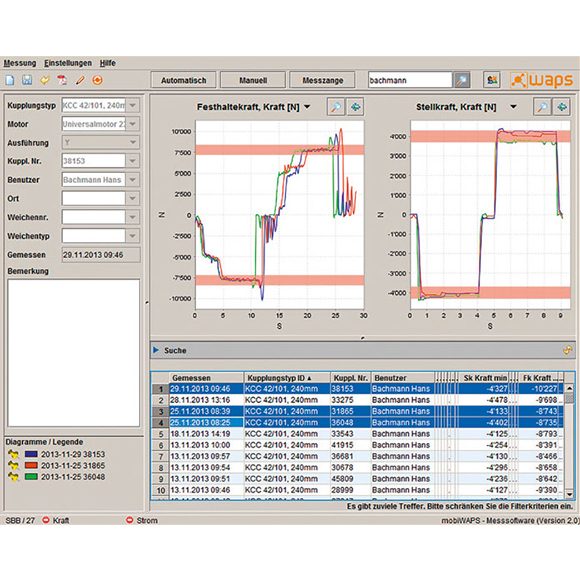

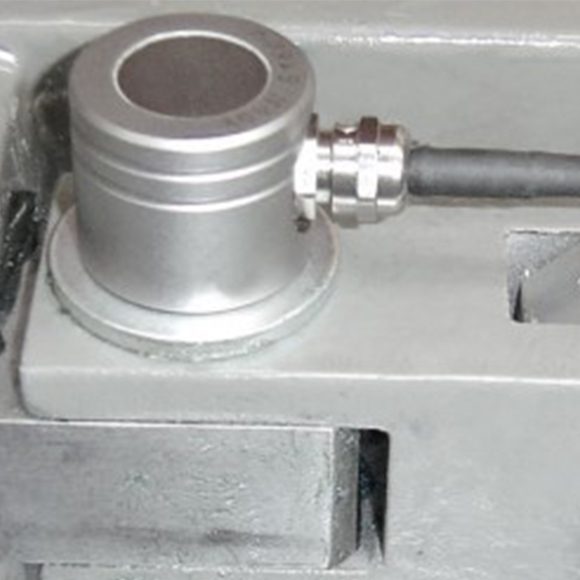

Using a force measuring pin all relevant forces in the railway point will be recorded and plotted in a diagram.
With the clamp meter the motor current can be recorded or the measuring period can be detected (trigger). The MobiWAPS Sensor set, in combination with a robust outdoor laptop, guarantees reliable measurements in rain, sun and even in snow. Saved measurements are synchronized automatically to other devices or a central database. So the retracebility is guaranteed.
Technical Data
- Measuring range force : +/- 12 kN
- Measuring range current : +/- 10 A
- Diameter of measuring bolt : 17 – 30 mm
- Measuring rate : 1 kHz
Features
- Measuring of the setting force, coupling force, holding force, point openings force, point rail tension, motor current, etc.
- Measurement reports as PDF or measurement files
- Certificate of calibration of the sensors
- Comparison of several measurements in one diagram
- Automatic detection of the measurement interval
- Automatic synchronization
- Central database and backup
- USB interface for communication and energy supply
