The point drive test bench our solution for the complete overhaul of your point drives in your facilities.

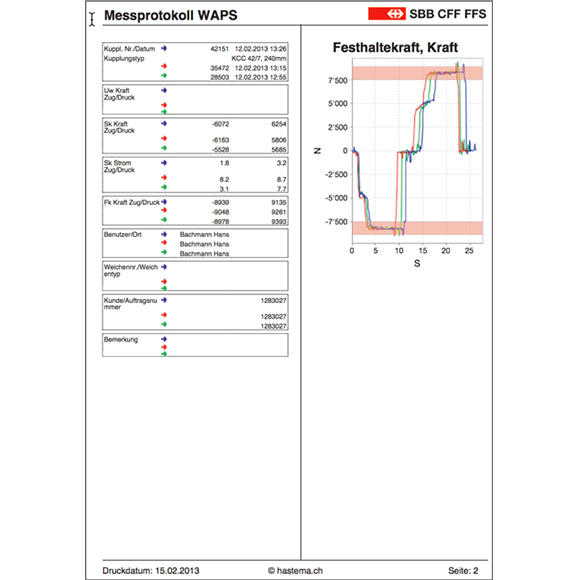

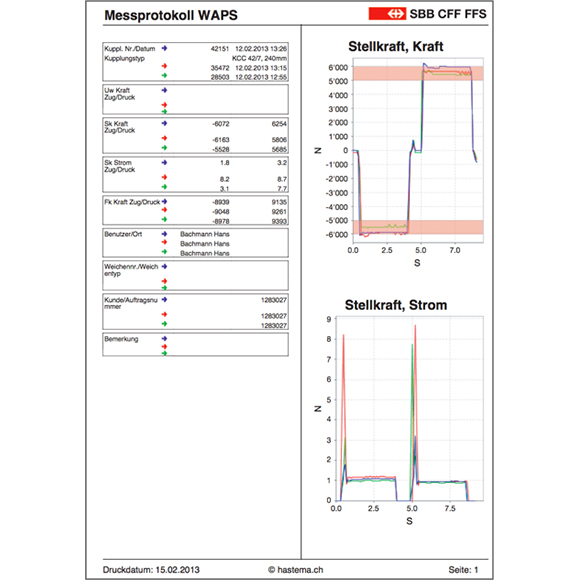

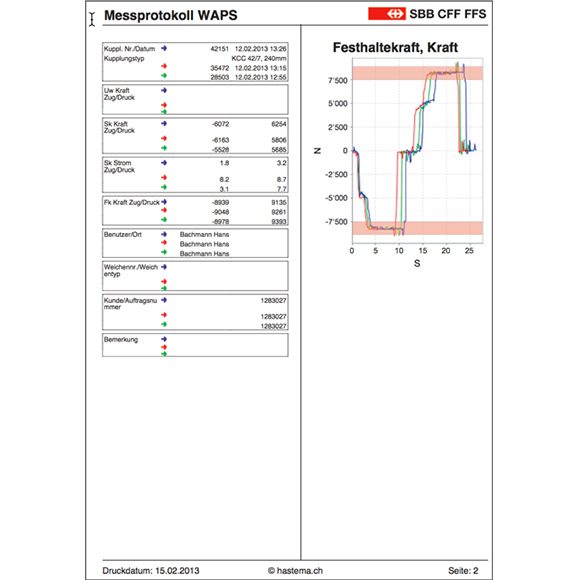

With an automatic check routine all relevant electrical and mechanical characteristic values are recorded and evaluated. The inspection protocol provides information about the measurement results and will be saved directly in the central database.

The inspection bench WAPS is equipped for all types of point drives.

Features

• Automatic check routine
• Measuring of the setting force, coupling force, holding force, point openings forces, stroke, power rating,
• electrical circuit etc.
• Measurement reports as PDF or measurement files
• Certificate of calibration of the sensors
• Comparison of several measurements in one diagram
• Central database and backup

Specification

Force measuring range : +/- 30 kN
Stroke : 300 mm
Measuring rate : 1 kHz
Current measuring range : +/- 10 A
Voltage measuring range : +/- 400 V
Frequency : 0 … 50 Hz
